Surgical Anatomy of the Esophagus and Diaphragm

Summary

The esophagus is a 25–30 cm muscular conduit extending from the pharynx (lower border of the cricoid cartilage, C6) to the gastric cardia (T11), transporting the bolus by coordinated peristalsis through the neck, thorax, and abdomen before piercing the diaphragm at the T10 esophageal hiatus. It is a segmentally supplied tube with a rich submucosal vascular and lymphatic plexus and — critically — no serosa along its thoracic course.

The diaphragm is a dome-shaped musculotendinous partition separating the thoracic and abdominal cavities. It is the principal muscle of respiration and a key contributor to gastroesophageal junction (GEJ) competence through the pinch-cock action of the right crus. Command of these relationships underpins the four operations built on this anatomy: esophagectomy, hiatal hernia repair, fundoplication, and antireflux surgery.

Embryology of the Esophagus and Diaphragm

Esophagus

The esophagus arises from the foregut. In the 4th week a respiratory (laryngotracheal) diverticulum buds ventrally, and the tracheoesophageal septum partitions the primitive foregut into a ventral respiratory tract and a dorsal esophagus that elongates as the heart and lungs descend.

Muscle differentiation follows a cranio-caudal rule: the upper third is skeletal muscle derived from branchial (pharyngeal) arch mesenchyme, whereas the lower two-thirds is smooth muscle from splanchnic mesoderm. Failure of foregut septation produces the clinically important trio of esophageal atresia, tracheoesophageal fistula, and congenital esophageal stenosis (esophageal duplication cyst is the rarer fourth).

Diaphragm

The diaphragm is assembled from four embryologic components, each contributing a distinct adult region:

Defects in this fusion produce congenital diaphragmatic hernias. The congenital diaphragmatic hernia reference traces these lesions back to failure of the pleuroperitoneal fold to close the pericardioperitoneal canal.

Gross Anatomy and Segmental Relations

The adult esophagus measures 25–30 cm (8–10 cm in the newborn) and runs from the lower border of the cricoid cartilage (C6) to the gastric cardia (T11). It is conventionally divided into cervical, thoracic, and abdominal segments, each defined by its own relations and its own operative hazards. Rather than memorise scattered lists, anchor the three most surgically consequential relations of the thoracic segment — the recurrent laryngeal nerves, the thoracic duct, and the left atrium — and read the rest off the master table below.

The anterior relation of the mid-thoracic esophagus to the left atrium explains why a grossly dilated left atrium (e.g., severe mitral stenosis) can indent the esophagus and produce dysphagia, and why a retrocardiac barium column is a useful surrogate for atrial size.

Normal Esophageal Constrictions

Four physiologic constrictions narrow the esophageal lumen at predictable levels. They are the highest-yield anatomical landmarks of the whole tube because they dictate where pathology and iatrogenic injury concentrate. Learn each by its vertebral level and its endoscopic depth from the incisor teeth.

Histology of the Esophagus

The esophageal wall follows the standard gut plan with two clinically decisive modifications — a protective squamous lining and the absence of serosa along the thoracic segment.

• Mucosa — non-keratinized stratified squamous epithelium (built for mechanical abrasion), lamina propria, and muscularis mucosae. The abrupt change to gastric columnar epithelium is the endoscopic Z-line.
• Submucosa — houses the mucous esophageal glands, the vascular and lymphatic plexuses, and the Meissner (submucosal) plexus.
• Muscularis propria — skeletal muscle in the upper third, mixed in the middle third, and smooth muscle in the lower third; the Auerbach (myenteric) plexus lies between its circular and longitudinal layers.
• Adventitia — loose connective tissue over the thoracic esophagus; only the short abdominal segment acquires a true serosa.

The surgical importance of the missing serosa cannot be overstated: it removes the tough outer barrier that normally contains tumour and limits leakage, so malignancy extends locally with ease, anastomoses are prone to breakdown, and any perforation vents directly into the mediastinum.

Gastroesophageal Junction and the Antireflux Barrier

The gastroesophageal junction (GEJ) is the transition from esophageal squamous mucosa to gastric columnar mucosa — the endoscopic Z-line. Continence here is not the work of a single sphincter but of an overlapping antireflux barrier, and every antireflux operation is an attempt to reconstruct its components:

• Lower esophageal sphincter (LES) — intrinsic smooth-muscle high-pressure zone.
• Intra-abdominal esophageal segment — positive abdominal pressure keeps it collapsed.
• Diaphragmatic crura — the right crus provides an external "pinch-cock" sphincter.
• Angle of His — the acute esophagogastric angle acts as a flap valve.
• Phrenoesophageal ligament and the gastric fundus — anchor and buttress the junction.

Here is the anatomy that these mechanisms defend, contrasted with the two hernias that defeat them:

Failure of these mechanisms predisposes to gastroesophageal reflux disease (GERD) and hiatal hernia. The GERD pathophysiology summary links hiatal herniation and LES dysfunction to the reflux phenotype.

Arterial and Venous Supply

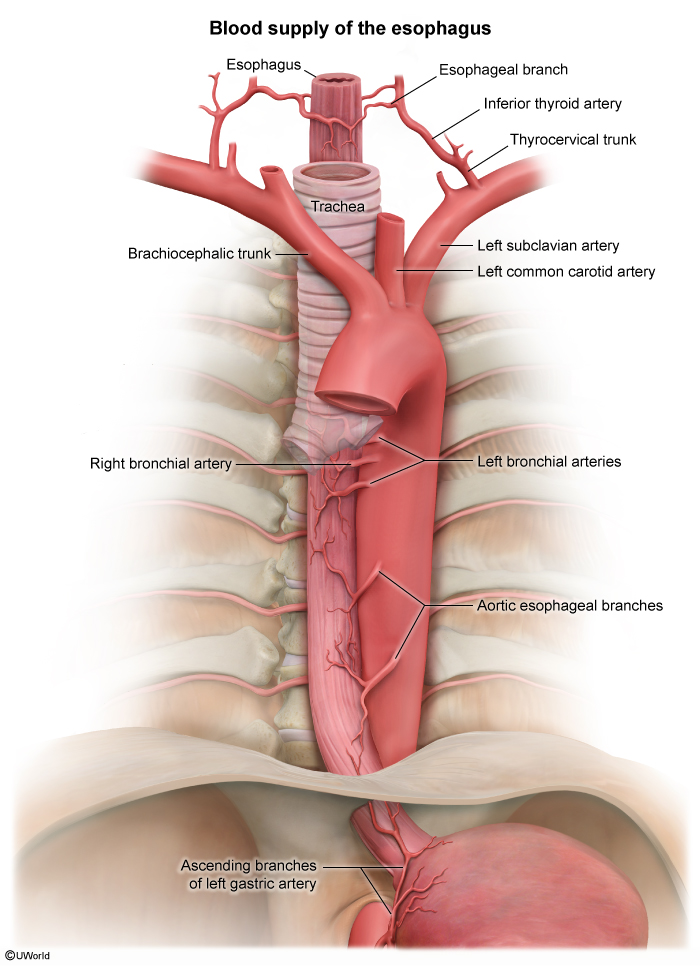

The esophagus has a segmental (three-tier) blood supply — each segment is fed by whichever regional artery is closest — yet a rich submucosal vascular plexus links these territories. Preserving that plexus during mobilisation is the single most important manoeuvre for avoiding ischaemic anastomotic complications after esophagectomy.

This three-segment arterial map is a classic Step 1 vignette: a Mallory-Weiss tear at the GEJ bleeds from the distal territory supplied by the left gastric artery, whereas mid-esophageal lesions bleed from direct aortic branches and cervical lesions from the inferior thyroid artery.

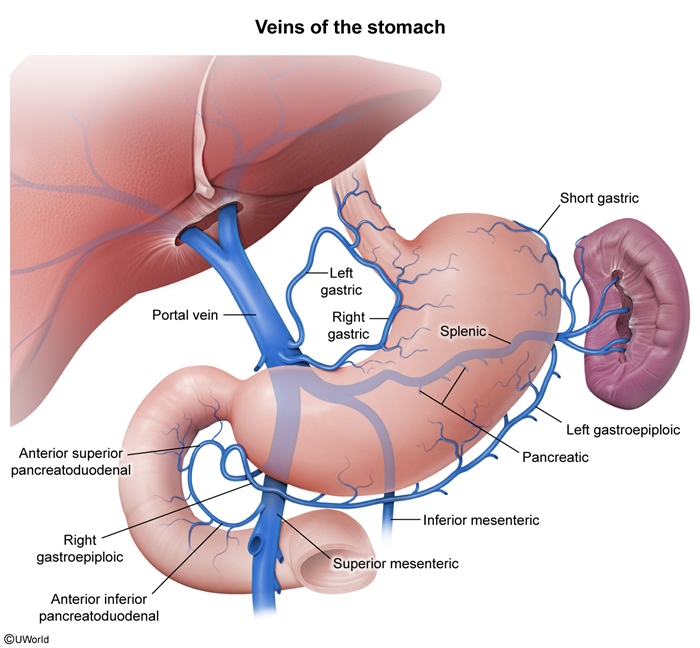

Venous drainage mirrors the arteries but carries a unique clinical twist at its lower end, where portal and systemic systems meet:

The portosystemic anastomoses reference maps this left-gastric-to-azygos connection alongside the rectal and periumbilical shunts that decompress a hypertensive portal system.

Lymphatic Drainage and Innervation

Lymphatic drainage

Drainage broadly follows the segments, but the defining feature is a dense network of longitudinal submucosal lymphatics that allows tumour to travel far along the wall before it drains to a regional node.

Innervation

Parasympathetic (vagal) fibres form the two vagal trunks on the distal esophagus and drive peristalsis, LES relaxation, and glandular secretion. Sympathetic fibres from the T1–T10 chain mediate vasoconstriction, reduced motility, and visceral pain transmission.

Surgical Anatomy of the Diaphragm

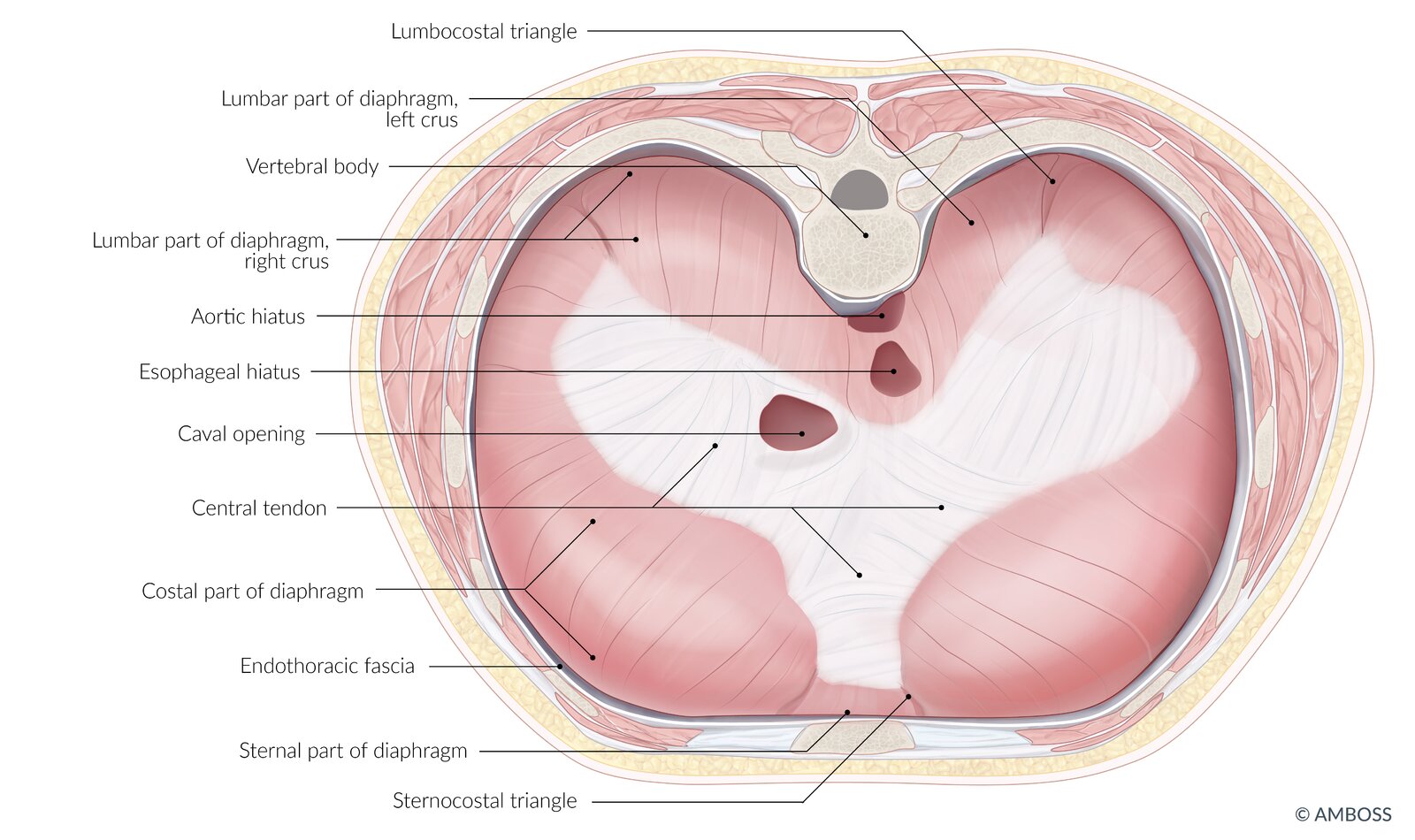

The diaphragm is a dome-shaped musculotendinous sheet with a central tendon and a peripheral muscular rim that takes origin from three attachments: sternal (posterior xiphoid), costal (inner surfaces of ribs 7–12), and lumbar (the crura and arcuate ligaments).

Crura

The right crus arises from the bodies of L1–L3, is longer and stronger than the left, and splits to form the esophageal hiatus, slinging around the distal esophagus. The left crus arises from L1–L2 and is shorter. This right-crus sling is the anatomical basis of the diaphragmatic "pinch-cock" antireflux mechanism.

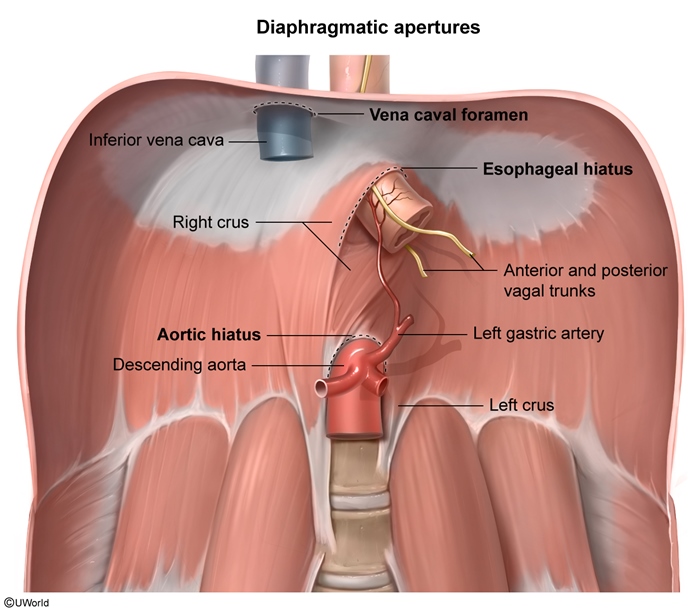

Diaphragmatic apertures

Phrenoesophageal ligament, angle of His, and phrenic nerve

The phrenoesophageal ligament is a fibroelastic membrane anchoring the distal esophagus to the hiatus; it maintains the intra-abdominal esophageal segment and preserves the antireflux barrier — its weakening is a prime contributor to hiatal hernia. The angle of His, the acute angle between esophagus and gastric fundus, acts as a flap valve, and its loss predisposes to GERD.

The phrenic nerves supply the sole motor innervation to the diaphragm — remember "C3, 4, 5 keep the diaphragm alive." The right phrenic travels with the IVC (through the caval opening), while the left pierces the muscular diaphragm separately. Injury produces hemidiaphragm paralysis with an elevated hemidiaphragm and postoperative respiratory compromise.

Applied Surgical Anatomy and Clinical Correlations

Every relation covered so far earns its place because it changes an operation. The table below is the consolidated "why it matters" list — each structure paired with the complication that follows if it is misjudged.

Hiatal hernia — the anatomy that fails

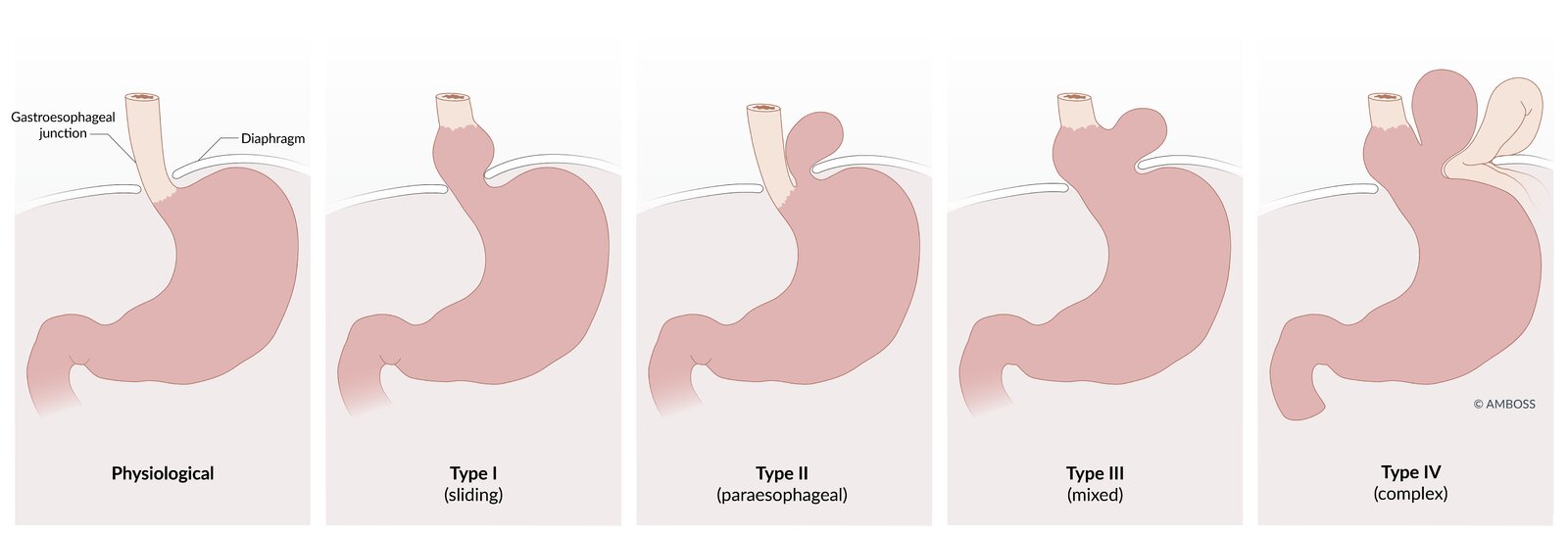

Laxity or defect of the phrenoesophageal membrane at the hiatus produces the spectrum of hiatal hernias, from the common sliding type to the dangerous paraesophageal type:

Key operative sequences

During esophagectomy, the structures to identify and protect or manage are the recurrent laryngeal nerves, thoracic duct, azygos vein, vagus nerves, left gastric artery, inferior pulmonary veins, aorta, trachea, main bronchi, and pericardium.

Hiatal hernia repair / fundoplication proceeds in a defined order:

1. Step 1: Complete circumferential mobilisation of the distal esophagus into the mediastinum to restore an adequate intra-abdominal esophageal segment.
2. Step 2: Identify and preserve the anterior and posterior vagal trunks throughout the dissection.
3. Step 3: Reduce the hernia sac and expose the right and left crura.
4. Step 4: Approximate the crura posteriorly (crural repair) without excessive tension to recalibrate the hiatus.
5. Step 5: Construct an appropriate fundoplication (e.g., 360° Nissen) when antireflux control is indicated.

Mnemonics

The five memory hooks that carry this lesson through a viva or a written paper, consolidated for last-minute revision:

Key Points for Exams – نقاط مهمة للامتحانات

• The esophagus runs from C6 to T11 and measures 25–30 cm, divided into cervical, thoracic, and short abdominal segments.
• The thoracic esophagus lacks a serosa, predisposing to rapid local tumour spread and severe mediastinal contamination after perforation.
• Four physiologic constrictions occur at the UES (C6), aortic arch (T4), left main bronchus (T5), and diaphragmatic hiatus (T10) — the sites of foreign-body impaction, caustic injury, and instrumentation perforation.
• The LES is a physiologic high-pressure zone, supported by the right crus, intra-abdominal esophagus, angle of His, and phrenoesophageal ligament — together the antireflux barrier.
• Arterial supply is segmental (inferior thyroid → thoracic aortic/bronchial → left gastric) but the submucosal plexus must be preserved during mobilisation.
• Longitudinal submucosal lymphatics permit extensive proximal and distal (skip) spread of carcinoma, justifying wide lymphadenectomy.
• The distal esophagus is a portosystemic anastomosis (left gastric ↔ azygos), the anatomic basis of esophageal varices in portal hypertension.
• The diaphragm forms from four components; fusion defects cause Bochdalek (posterolateral) and Morgagni (anteromedial) hernias.
• Apertures: T8 IVC, T10 esophagus + vagal trunks, T12 aorta + thoracic duct + azygos; the esophageal hiatus is formed by the right crus.
• The phrenic nerves (C3–C5) are the sole motor supply to the diaphragm; injury causes hemidiaphragm paralysis and respiratory compromise.
• Vagal trunks follow LARP (Left→Anterior, Right→Posterior); injury during fundoplication causes gastroparesis.
